Chapter 2: Equations for Steady One-Dimensional Compressible Fluid Flow


Problem 2.8:

flows through a circular pipe that has a diameter of cm. The temperature, pressure, and velocity at the inlet to the pipe are K, kPa, and m/s, respectively. Assuming that the flow is steady and isothermal, calculate the pressure on the exit plane and the heat added to the methane in the pipe if the velocity on the pipe exit plane is m/s. Assume that the methane can be treated as a perfect gas with a specific heat ratio of 1.32 and a molar mass of 16.

Solution:

Given:
Methane gas flow ( \( \gamma = \) 1.32, \( \hat{m} = \) 16 kg/kmol ),
circular pipe: \( D = \) 4 cm,
\( T_{1} = \) 200 K,
\( p_{1} = \) 250 kPa,
\( V_{1} = \) 30 m/s,
Isothermal \( \implies T_{2} = T_{1} = \) 200 K,
\( V_{2} = \) 35 m/s.

To calculate: \( p_{2}=?, \dot{q}=? \)

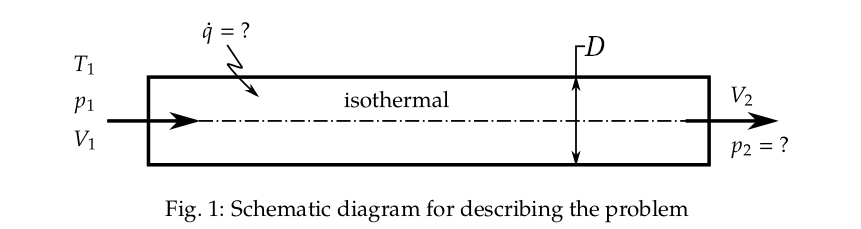

The schematic diagram of the problem description is shown in Fig. 1.

Schematic diagram of problem

The gas constant, \( R \), of methane can be calculated using the universal gas constant, \( R_{u} = \) 8314 J/kmol-K, and the molar mass of methane, \( \hat{m} = \) 16 kg/kmol, as,

\[ R=\frac{R_{u}}{\hat{m}}=\frac{8314}{16}= 519.625\, \text{J/kg-K}\ . \]

The density of the gas at inlet can be calculated using the equation of state for the perfect gas,

\[ \rho_{1}=\frac{p_{1}}{R\,T_{1}}=\frac{250\times10^{3}}{519.625\times200}=2.40558\,\text{kg/m}^{3}\ . \]

The mass flow rate through the pipe is,

\[ \dot{m}=\rho_{1}A_{1}V_{1}=2.40558\times\frac{\pi}{4}0.04^{2}\times30=90.688\times10^{-3}\,\text{kg/s}\ . \]

Using the conservation of energy equation,

\[ c_{p}T_{1}+\frac{V_{1}^{2}}{2}+\frac{\dot{q}}{\dot{m}}=c_{p}T_{2}+\frac{V_{2}^{2}}{2} \] Since \( T_{1}=T_{2} \), \[ \dot{q}=\frac{\dot{m}}{2}\left(V_{2}^{2}-V_{1}^{2}\right) \]
\[ \dot{q}=\frac{90.688\times10^{-3}}{2}\times\left(35^{2}-30^{2}\right) \]
\[ \boxed{\dot{q}=14.7368\,\text{J/s}}\ . \]

By conservation of mass for a steady flow, the mass flow rate at the exit is equal to mass flow rate at the inlet.


--- Ad ---

---


The mass flow rate can be used to calculate the density at the exit,

\[ \rho_{1}\,A\,V_{1}=\rho_{2}\,A\,V_{2} \] \[ \rho_{2}=\frac{\rho_{1}\,V_{1}}{V_{2}} \]
\[ \rho_{2}=\frac{2.40558\times30}{35}=2.061926\,\text{kg/m}^{3} \]

Using the perfect gas equation, for an isentropic flow,

\[ \frac{p_{1}}{\rho_{1}}=\frac{p_{2}}{\rho_{2}} \]
\[ p_{2}=\rho_{2}\times\frac{p_{1}}{\rho_{1}}=2.061926\cdot\frac{250\times10^{3}}{2.40558} \]
\[ \boxed{p_{2}=214285.74\,\text{Pa}}\ . \]

Please note that the momentum equation is not used here for calculating the pressure, as the flow is not isentropic. Hence, frictional forces need to be considered if momentum equation is to be used.



--- Ad ---

---


For further details, please contact me at:
mail.spbhat@gmail.com
If you observe any error or want to provide me with feedback, please don't hesitate to contact me.

Thanks,
Sourabh Bhat
